Transformer Winding Deformation Tester Resolution 0.25kHz 0.5kHz 1kHz

Name: Transformer Winding Deformation Tester Resolution 025kHz 05kHz 1kHz
Brand: GDZX
Price: 1 USD

Quality Transformer Winding Deformation Tester Resolution 0.25kHz 0.5kHz 1kHz for sale

Brand Name : GDZX

Model Number : ZX-BRY01

Certification : ISO9001

Place of Origin : China

MOQ : 1Set

Price : US $7659.00-$13589.00 /SET

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal

Supply Ability : 1200sets/year

Delivery Time : 7-20 work days

Packaging Details : Packing wooden case or carton

Product name : Transformer Winding deformation Tester

Linear sweep range : (10Hz) - (10MHz) 40000 dots;resolution 0.25kHz, 0.5kHz, 1kHz

Section sweep range : (0.5kHz) - (1MHz), 2000 dots

Test range : -120dB to +20dB

Test accuracy : 0.1dB

Sweep frequency accuracy : 0.01%

Signal input impedance : 1MΩ

Signal output impedance : 50Ω

Signal output range : +/-20V

Same phase test reproductivity : 99.99%

Carrying box dimension : 390*310*340mm

Total weight : 13KG

Contact Now

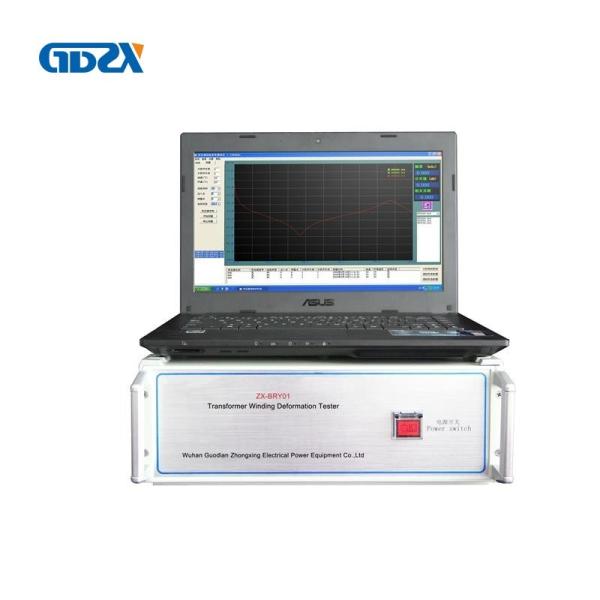

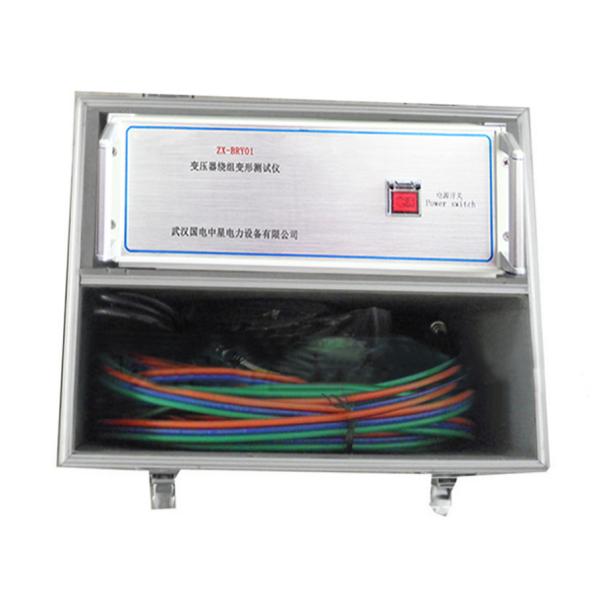

Intelligent High Accuracy Power Transformer Winding deformation Tester

Product introduction

ZX-BRY01 Transformer winding deformation tester is for testing of power transformer (voltage level at or above 6kV) and other transformers with special purpose. The power transformer is inevitably vulnerable to impulse of various fault short-circuit current or physical collision in the process of operation and transportation. The transformer windings may lose stability under the powerful electro-dynamic force exerted by such short-circuit current, which could result in permanent deformations such as local distortion, swell or dislocation and will severely affect safe operation of the transformer. Deformation of transformer windings can be measured with frequency response analysis method according to national standard DL/T911-2004 for electric power industry, i.e. detect amplitude-frequency response characteristics of each transformer winding and make vertical or horizontal comparison of the detection result to judge possible deformation of the transformer winding based on change of amplitude-frequency response characteristics.

Transformer winding deformation tester consists of measuring part and analysis software part. The measurement part is under high-speed microcontroller control, capable of signal generation and signal measurement. The measurement section is connected to the tablet via the wireless WIFI interface. It is not wired, easy to use, and can be connected to a tablet or laptop using wireless Bluetooth and USB.

Transformer Winding Deformation Tester Resolution 0.25kHz 0.5kHz 1kHz

Features

1. In the test process only need to remove the transformer connection bus.

2. Sweeping frequency up to 10MHz, scanning interval can be 0.25kHz, 0.5kHz, 1kHz for multiple analysis

3. High intelligent, auto range adjustment, auto sampling frequency adjustment.

4. Windows platform, compatible with Win98 / 2000 / XP / Win7 / Win8 / Win10 system.

5. Historical curv e comparison analysis, max 6 curves observation, auto analysis and diagnosis system

6. Auto save environment parameters and testing results, color printing function

7. Humanized software design, more convenient to use.

8. Auto complete the test after wiring, during the measurement check the historical curves or stop at any time

9. Measurement time less than 60 seconds for every phase, 10 minutes for whole transformer windings.

Technical Indicators

1.Two sweep methods	1)Linear sweep range (10Hz) - (10MHz) 40000 dots;resolution 0.25kHz, 0.5kHz, 1kHz
1.Two sweep methods	2)Section sweep range (0.5kHz) - (1MHz), 2000 dots
2.Test range	-120dB to +20dB
3.Test accuracy	0.1dB
4.Sweep frequency accuracy	0.01%
5.Signal input impedance	1MΩ
6.Signal output impedance	50Ω
7.Signal output range	+/-20V
8.Same phase test reproductivity	99.99%
9.Carrying box dimension	390310340mm
10.Total weight	13KG

Test cases
